Shuttle XPC SH170R6 Mini PC Barebone ICE2 Liquid Cooling with 80Plus Bronze 300W Power Supply
Shuttle XPC SH170R6 Mini PC Barebone ICE2 Liquid Cooling with 80Plus Bronze 300W Power Supply
Small but strong performance Mini PC for diverse applications, Support Intel® 6th generation Core™ processor , Equipped with an Intel® 100 series Chipset, Integrated Cooling Engine 2 (I.C.E. 2) Heat pipe technology, Support PCI-E expansion cards, Support 4K Ultra HD, M.2 & Mini PCIe expansion slots, Flexible expansion of hard disk installation, Three Independent display Outputs, Support Power-on by RTC, Support Wake-on-LAN, Support Intel® Rapid Storage, Support Mini-ITX Motherboard, Built-in Intel® Gigabit LAN interface, The Watchdog– Protecting System Security, Customizable Front Panel, 80Plus Bronze Certified 300W Power Supply, Multiple Operating System Support Windows 7, 8, 10 & Linux.
Price: ₱ 17,999
Pay only P 1,694 a Month for 12 months.
Or pay only P 3,209 a Month for 6 months.
- Installment promo is available for locally issued credit cards
- Card holder must transact inside an Asianic store to avail of the installment
Features
The high performance Mini PC with Intel® Skylake platform

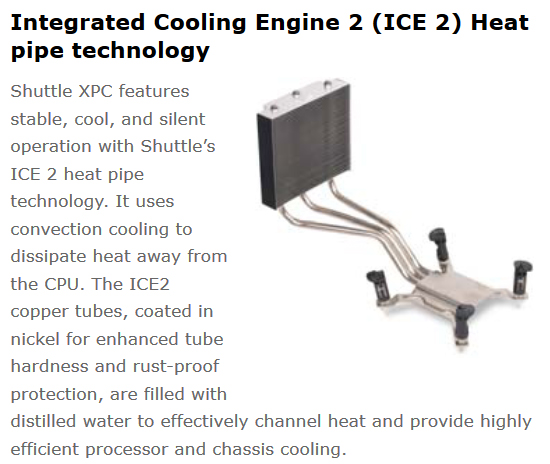

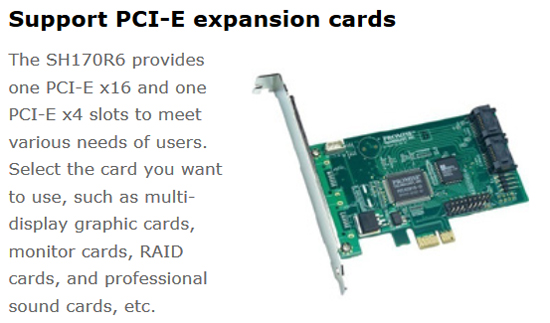

The new Shuttle XPC SH170R6 supports Intel® Skylake platform technology. This new model packs Intel® the latest 6th generation LGA 1151 95W processor. With Core™ i3/i5/i7 processors built-in graphics core, the SH170R6 is able to support 4k/Ultra HD video playback. At back panel of SH170R6 provides one HDMI and two DisplayPort to support three independent screen displays. The SH170R6 features one PCI-E x16 slot and one PCI-E x4, allowing for installation of dual slot graphics cards, video surveillance cards, RAID cards, and more applications. It also features strong expandability with one M.2 and one half-size Mini PCIe slots support for M.2 SSD and a WiFi card or other compatible modules. Equipped with Shuttle’s I.C.E 2™ cooling engine as well as 80 Plus Bronze certified with a 300W power supply, allows the SH170R6 to feature high energy efficiency and maintain high stability for long-term operation.
Technical Specifications
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor |
| CHIPSET | Intel Skylake H170 Express chipset |
| MEMORY | (4)DDR4 2133MHz support, dual channel up to 64GB (16GB*4) |
| VGA | (1)HDMI + (2)DisplayPort support triple independent display 4K/2K playback Integrated in CPU (Intel HD 530 Graphics) |
| AUDIO | Realtek ALC892 7.1 Channel high definition audio |
| ETHERNET | Intel Chip i219-LM 10Mb/s,100Mb/s,1Gb/s operation Support Wake-on-LAN function |
| STORAGE INTERFACE | SATA 3.0 (6.0Gb/s) interface |
| ONBOARD CONNECTORS | (2) 4 Pin fan connector (4) SATA 6.0 connector (1) ATX main power (2*10) (1) ATX main power (2*2) (1) RS232 header (1) Low Pin Count header (1) Front USB3.0 header (1) Front AUDIO header (1) Front USB2.0 header (1) 2x5 pin USB header |
| FRONT PANEL | (1) USB 2.0 Port (1) USB 2.0 Port with mobile charger mobile device charger feature (2) USB 3.0 Port (1) External microphone jack 1/8” (1) External headphone jack 1/8” Power button HDD/ODD Led |
| BACK PANEL | (6) USB 3.0 Port (1) eSATA Port (1) Line in jack 1/8” (1) Line out jack 1/8” (1) Side surrond out jack 1/8” (1) Rear surrond out jack 1/8” (1) Center bass out jack 1/8” (1) LAN (1) CMOS clear button (2) DisplayPort (1) HDMI Port |

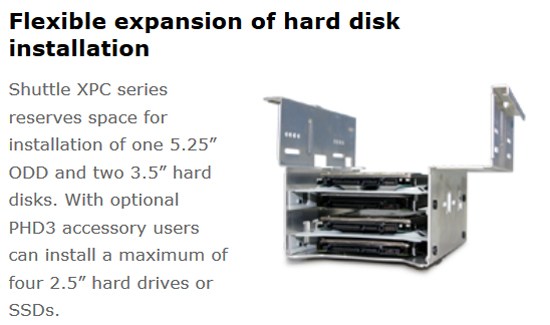

| DRIVE BAYS | (1) 5.25" ODD bay (2) 3.5" HDD bay Support 2.5" HDD x2 or 4, if use accessory PHD3 x1 or 2 |
| DIMENSIONS | 332(L) x 216(W) x 198(H) mm |
| POWER | 80 Plus 300W power supply Input:100 - 240V AC Support 80 PLUS Bronze |
| ACCESSORIES | XPC Multi-Language quick guide XPC DVD Driver Heat-sink compound SATA cable x2 Power cord Screw package |
| EXPANSION SLOT | (1) PCI-E X16 slot (1) PCI-E X4 slot (1) M.2 MAX to 2280 type M key socket (1) Half-size Mini PCI-E slot |
| OS SUPPORT | Windows 7 Windows 8.1 Windows 10 Linux |
